Internal Broaching Tools

INTERNAL BROACHING TOOLS: are in a league of their own when it comes to cutting accurate and consistent forms on a highly repeatable basis with a minimum of complicated set-up or technical input and variation. Simply quality parts produced one after the other, quickly.

TOOL MATERIALS: We offer you tools made in conventional and powder metallurgy High Speed Steels. Including standard and premium grades, M2, M35, M42, ASP2023, ASP2030 and equivalents (HS6-5-2, HS6-5-3, HS-6-5-2-5, HS 2-9-1-8, HS6-5-3-8) but only purchased from the worlds leading HSS manufacturers.

TOOL COATINGS: Coating of broaches is not without its technical difficulties, but when it is right it can work very well. We have suppliers able to offer you TiN, TiCN, TiAlN, AlCrN, and combinations.

TYPES:
Involute Splines (Gears)
Straight Sided Splines
Serrations
Triangular, Square, Pentagon, Hexagon, Septagon, Octagon - Polygonal Forms
Oil Grooves and Keyway (in solid tool form, often called One Splines)

APPLICATIONS:
All Gear Boxes and Powertrains - Automotive, Agricultural, Aerospace, Classic Vehicles
Steering Components - Universal Joints, Steering Wheels
Clutch and Braking
Landing Gear
Fuel Injections Systems
Fighting Vehicles


Internal broaching tools

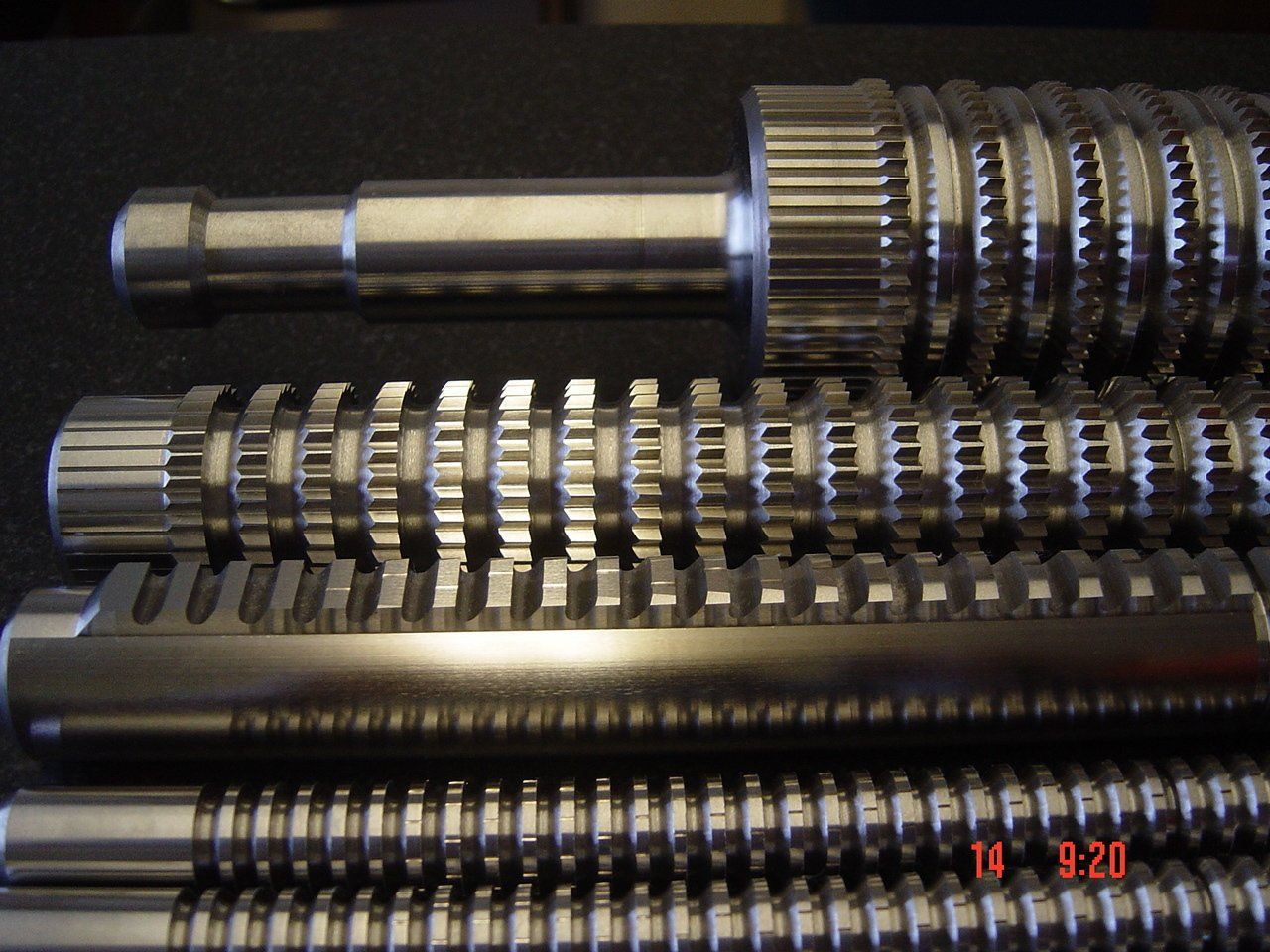

Involute spline, serration, one spline (keyway), and plain round pull broaches

Button
Broach teeth

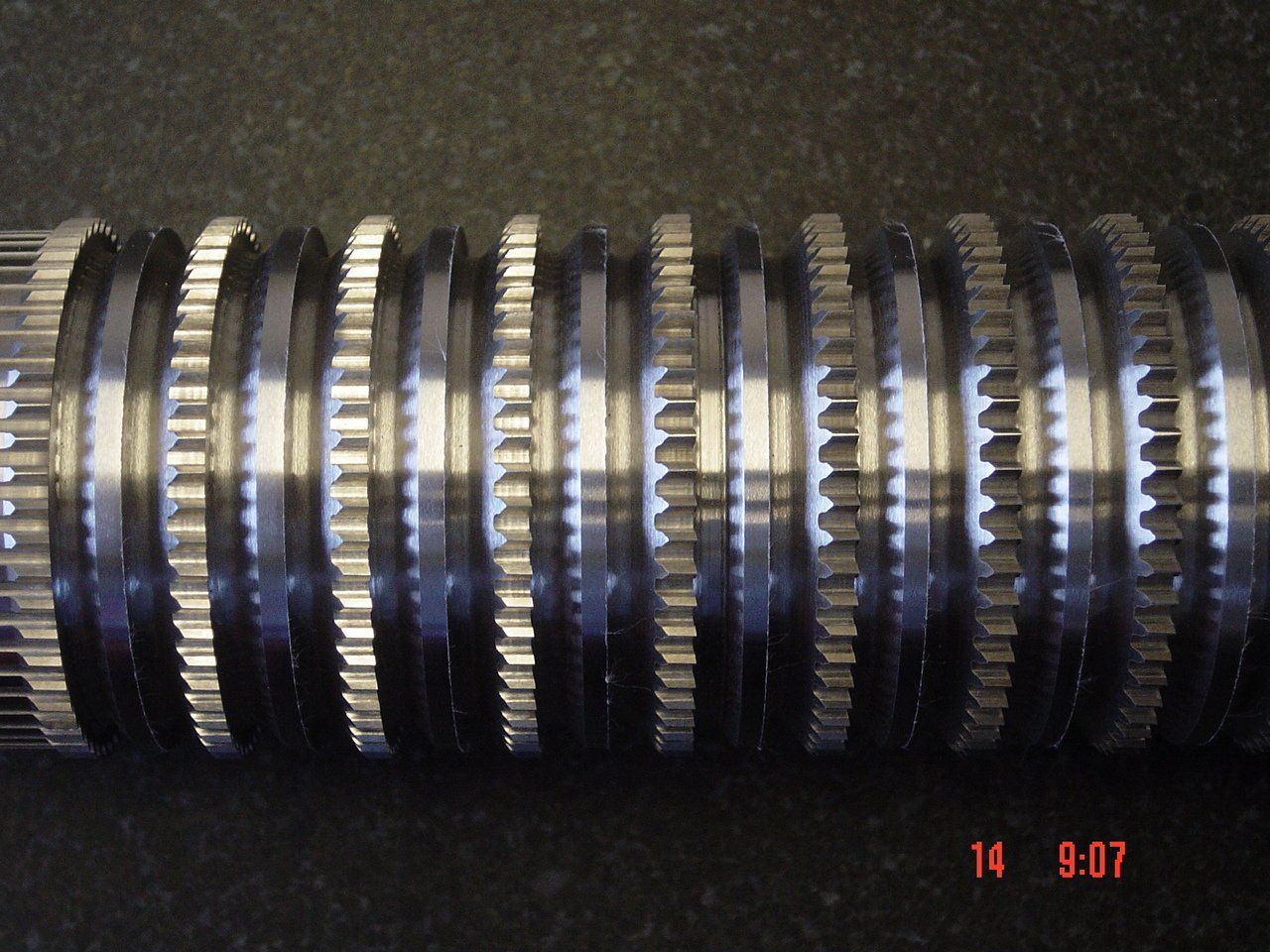

View of INTERSPACED teeth for sizing a minor diameter and PCD (form) simultaneously

Button
Automotive Pull Broaches

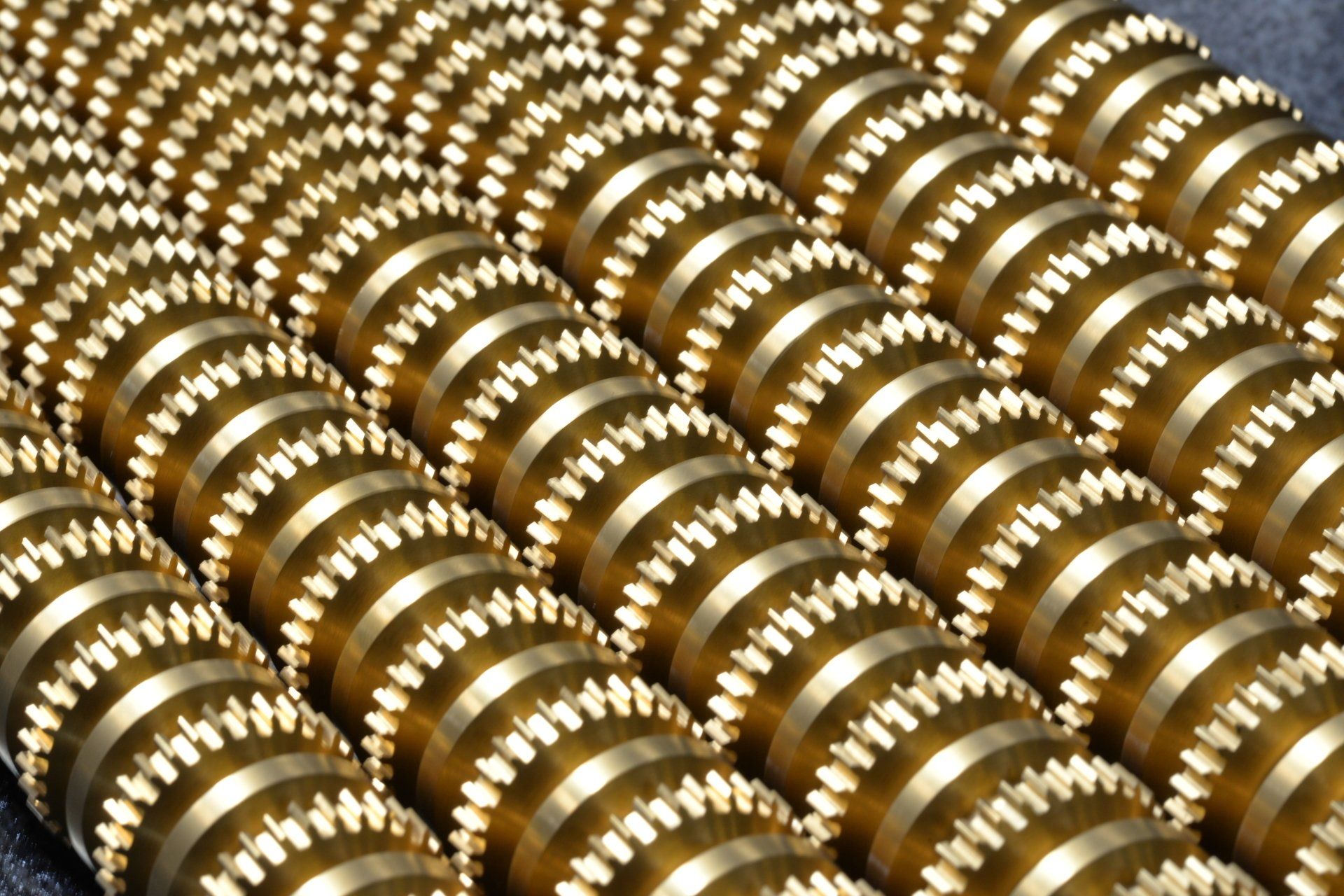

31T 24/48 45° Involute Serration Pull Broaches for Automotive Wheel Hubs

Button
Helical Broaching Tools

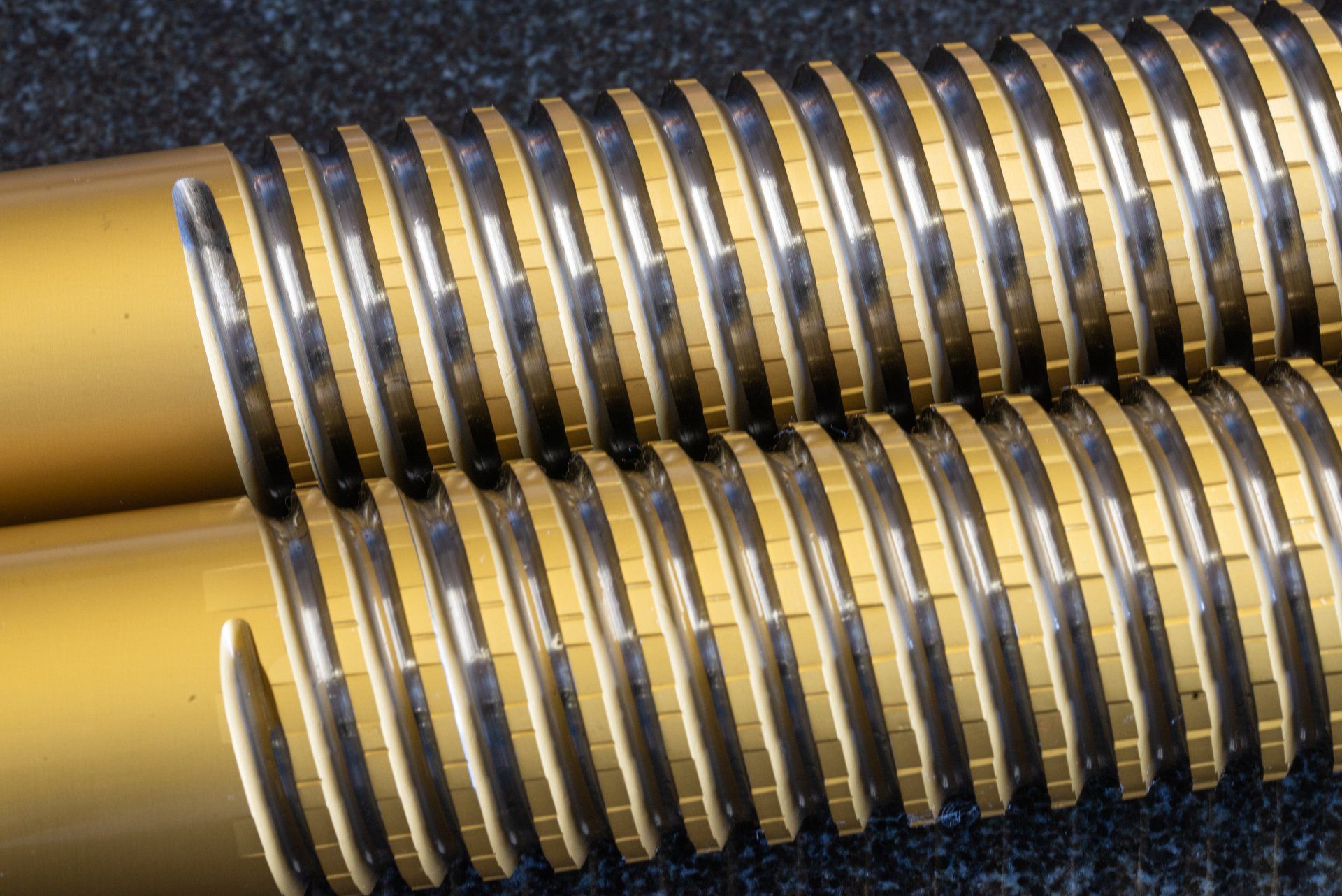

ASP30 TiN Coated Helical Gullet Spline Pull Broaches
